3.5'' 320x480 SPI+18Bit RGB

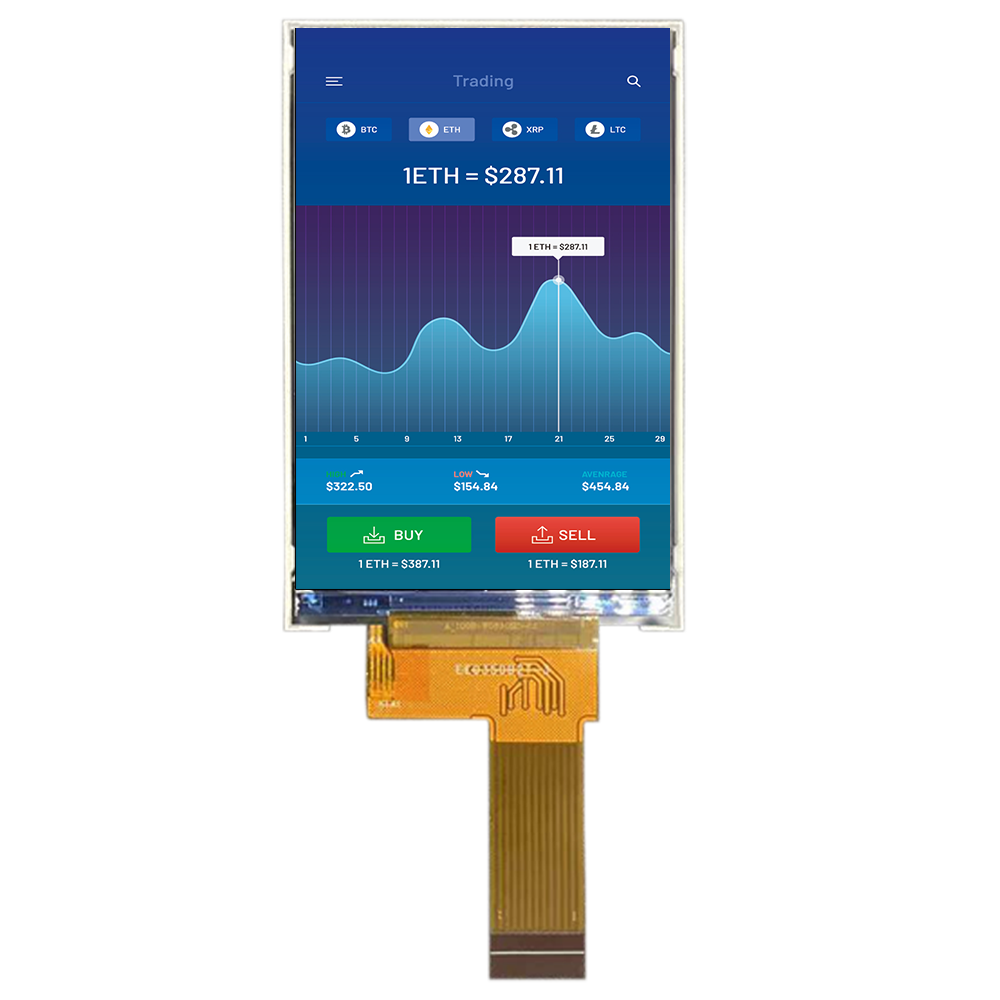

3.5inch TFT LCD Display 320x480 Resolution 400 nits Brightness IPS Viewing Angle for Versatile Applications

#PN: HY035HVBF005-400-N

Wide range of options/solutions suitable for your projects.
Custom touch/high brightness solutions to meet your needs.
Support small quantities for trial orders.

Aliexpress

3.5inch TFT LCD Display 320x480 Resolution 400 nits Brightness IPS Viewing Angle for Versatile Applications

The HY035HVBF005-400-N is a versatile 3.5-inch TFT LCD display featuring a resolution of 320x480 pixels. Designed with an IPS (In-Plane Switching) panel, it offers superior color accuracy and wide viewing angles from all directions, making it ideal for applications where consistent display quality is crucial. The display operates in a transmissive, normally black mode, which provides enhanced contrast and clarity, especially in varying lighting conditions.

This display is powered by the ST7796S driver IC, supporting a customizable SPI+18Bit RGB interface, making it adaptable for various system integrations. With a brightness of 400 nits, the display ensures clear visibility in both indoor and moderately lit outdoor environments. The module is built to last with a 50,000-hour LED lifetime, ensuring long-term reliability for industrial and commercial applications.

The HY035HVBF005-400-N operates efficiently across a wide temperature range, from -20°C to 70°C, and meets RoHS and REACH compliance standards, making it a safe and environmentally friendly choice. The display is customizable, with options to modify the interface, brightness, shape, and touch panel, providing flexibility to meet specific project requirements.

Main Parameters preview:

ATTRIBUTE	VALUE
• Part Number:	HY035HVBF005-400-N
• Display Diagonal(Size):	3.5 inch
• Display Mode:	TFT,Transmissive / Normally Black
• Resolution(Pixel):	320x480
• Viewing Direction:	IPS/All O'clock
• Driver IC:	ST7796S
• Interface(Customizable):	SPI+18Bit RGB
• Pinout(Changeable):	0 Pin
• Outline Dimension(mm):	*55.584.963.95 mm*
• Active Area(mm):	*48.9673.44 mm**
• Brightness (Adjustable):	400 nits
• Module lifetime(Hours):	50,000 Hours (LED)
• Operating temperature(°C):	OT:-20~70℃
• Compliant:	RoHS; REACH
• Touch or not:	LCM;No touch but Optional
• Support to Custom:	Interface / Brightness / Shape / Touch Panel

Recommended Usage

The HY035HVBF005-400-N is well-suited for use in medical devices, handheld instruments, control panels, and other applications requiring a reliable and clear display.

Its IPS technology, along with a customizable interface and robust build quality, makes it an excellent choice for professional-grade equipment where display performance and durability are paramount.

For further info regarding the parameters and configuration of the products, please kindly reach out to sales team for:

1、Full Specification / Datasheet.

2、Various Touch options as required.

3、Tech supports for running the display.

4、Display questions relating to your applications and long-term supply relationship.

5、Price for samples and Bulk quantity; Shipment terms; Payment methods.
